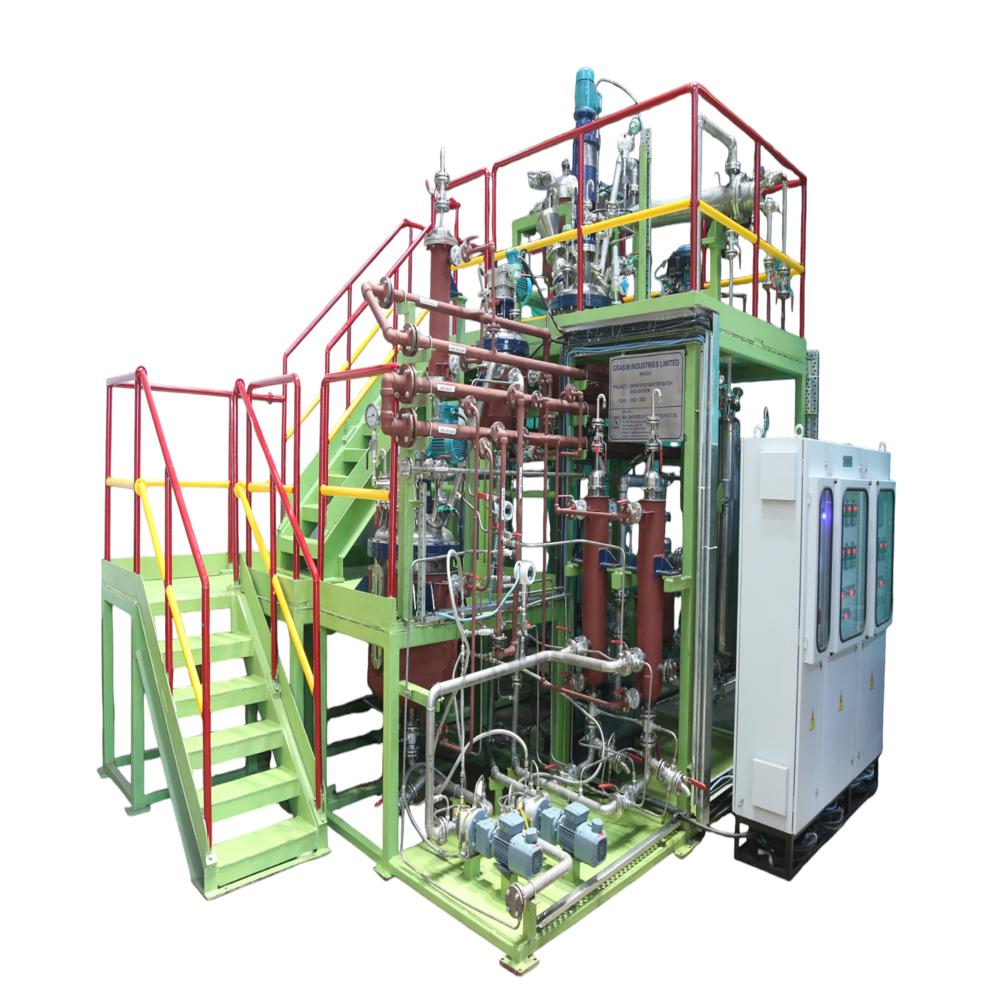

Skid Mounted Pilot Plant

Name: Skid Mounted Pilot Plant
Brand: Snowtech Equipments Private Limited
Price: 1500000.0 INR
Availability: InStock

Price 1500000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Skid Mounted Pilot Plant Specification

Shape
Rectangular base, modular structure

Phase
3 Phase

Torque
Variable, based on agitator/mixer requirement

Diameter
Vessel/tube diameter as per process (e.g. 100 mm to 600 mm)

Product Type
Skid Mounted Pilot Plant

General Use
Process simulation, chemical reaction experiments, research and development, scale-up studies

Material
Stainless Steel (SS 304/316/316L), Mild steel structure for frame

Type
Modular Pilot Plant / Skid Mounted Process System

Capacity
Customizable, typically 1 LPH to 1000 LPH (liters per hour)

Weight (kg)
Approx. 500 to 3000 kg (depending on configuration)

Computerized
Yes (optional or as per requirement)

Automatic
Fully Automatic / Semi Automatic (as per customization)

Touch Screen
Optional / PLC with HMI screen available

Control System
PLC/SCADA based control panel

Surface Treatment
Powder coated structure, painted external support

QC System
In-house quality tested to standard protocols

Tolerance
2% process tolerance

Drawing
Provided with P&ID and GA drawing upon request

Voltage
220V/380V/415V, 3 Phase, 50Hz (customized as required)

Dimension (L*W*H)
Customized (example: 4.5 m x 2.5 m x 3.5 m)

Feature
Modular design, Plug & play, Mobile, High process accuracy, Skid mounted, Compact

Color
Green frame, Red handrails, Yellow safety rails (custom colors available)

Service Support
Remote troubleshooting and on-site technician support available

Maintenance
Low maintenance design, easy access service points

Operating Temperature
Up to 300C, as required

Compliance
GMP/ATEX/CE standards upon request

Power Consumption
Depends on configuration; typically 2-10 kW

Piping
SS304/SS316/PVC/Copper as per process compatibility

Connections
Universal flange and threaded connections for easy integration

Installation
On-site supervision and commissioning available

Instrumentation
Digital/Analog pressure, temperature, flow transmitters, level indicators, mass flow meters

Documentation
FAT, SAT, IQ/OQ/PQ documentation provided

Safety
Emergency stop, Overload protection, Interlock system, Explosion-proof design on request

Utilities Required
Electricity, Water, Compressed Air, Steam (as required)

Mobility
Forklift compatible skid base

Pumps
Centrifugal gear or diaphragm pumps based on process needs

Operating Pressure
Up to 20 bar (customizable)

About Skid Mounted Pilot Plant

Discover the inestimable value of our Skid Mounted Pilot Plant-an exemplar of peerless engineering for process simulation, research, and scale-up studies. With instant checkout and rapid deployment, this rare modular process system features sterling construction with seamless stainless steel or MS frame, instrumentation for temperature, pressure, pH, and more. Shop Now to experience a versatile, plug & play setup, integrated utilities, complete documentation, GMP/GLP compliance, and on-site support. Fitted with safety interlocks, IP-rated panels, and tailored configurations, it's the ultimate choice for sophisticated R&D needs.

Versatile Modular Design & Competitive Edge

The Skid Mounted Pilot Plant is meticulously engineered for modular usage in research labs, process scale-up, and chemical reaction studies. Its compact, mobile structure ensures effortless installation and relocation, while the advanced instrumentation and automated PLC/SCADA controls enhance operational effectiveness. With GMP-compliant build and in-house quality validation, its customizable volume, flow rate, and process configurations offer undeniable advantages in diverse applications. Experience industry-leading process accuracy and streamlined simulation with this state-of-the-art pilot plant solution.

Swift Payment, Packaging, and Shipment Assurance

Benefit from transparent expenditure and quick dispatch through flexible payment terms suited for manufacturers, traders, and distributors. The Skid Mounted Pilot Plant is securely packaged for damage-free transportation and dispatched from the nearest FOB port, minimizing lead times. Our refined logistics ensure your investment arrives in pristine condition-ready for plug & play startup. Clear documentation and responsive coordination streamline every step, letting you focus on innovation while we handle safe packaging and swift delivery.

FAQ's of Skid Mounted Pilot Plant:

Q: How is the installation process for the Skid Mounted Pilot Plant managed?

A: Installation is straightforward; the skid-mounted, pre-piped, and pre-wired assembly arrives ready for use. Our team provides full onsite startup, commissioning support, and user training to ensure seamless integration and operation.

Q: What benefits does the modular design offer for research and development applications?

A: The modular structure allows customization of vessel volume, flow rate, and instrumentation to match specific process simulations or scale-up requirements. Its mobility and plug & play setup minimize installation time, enhancing productivity and experimental flexibility.

Q: When can I expect my order to be dispatched after purchase?

A: Orders are processed promptly, with quick dispatch timelines. Exact dispatch schedules are communicated at the time of purchase, factoring in configuration specifics and packaging requirements to ensure timely delivery.

Q: Where can the Skid Mounted Pilot Plant be used effectively?

A: It is ideally utilized in research facilities, pilot plants, and laboratories focused on chemical processes, pharmaceutical development, and industrial R&D. Its compliance with GMP/GLP standards makes it suitable for regulated environments.

Q: How does the plant ensure safety during operation?

A: Key safety features include an emergency stop, pressure relief valves, interlocks, and panel protection rated up to IP65. These components maintain operator and process safety during every phase of operation.
